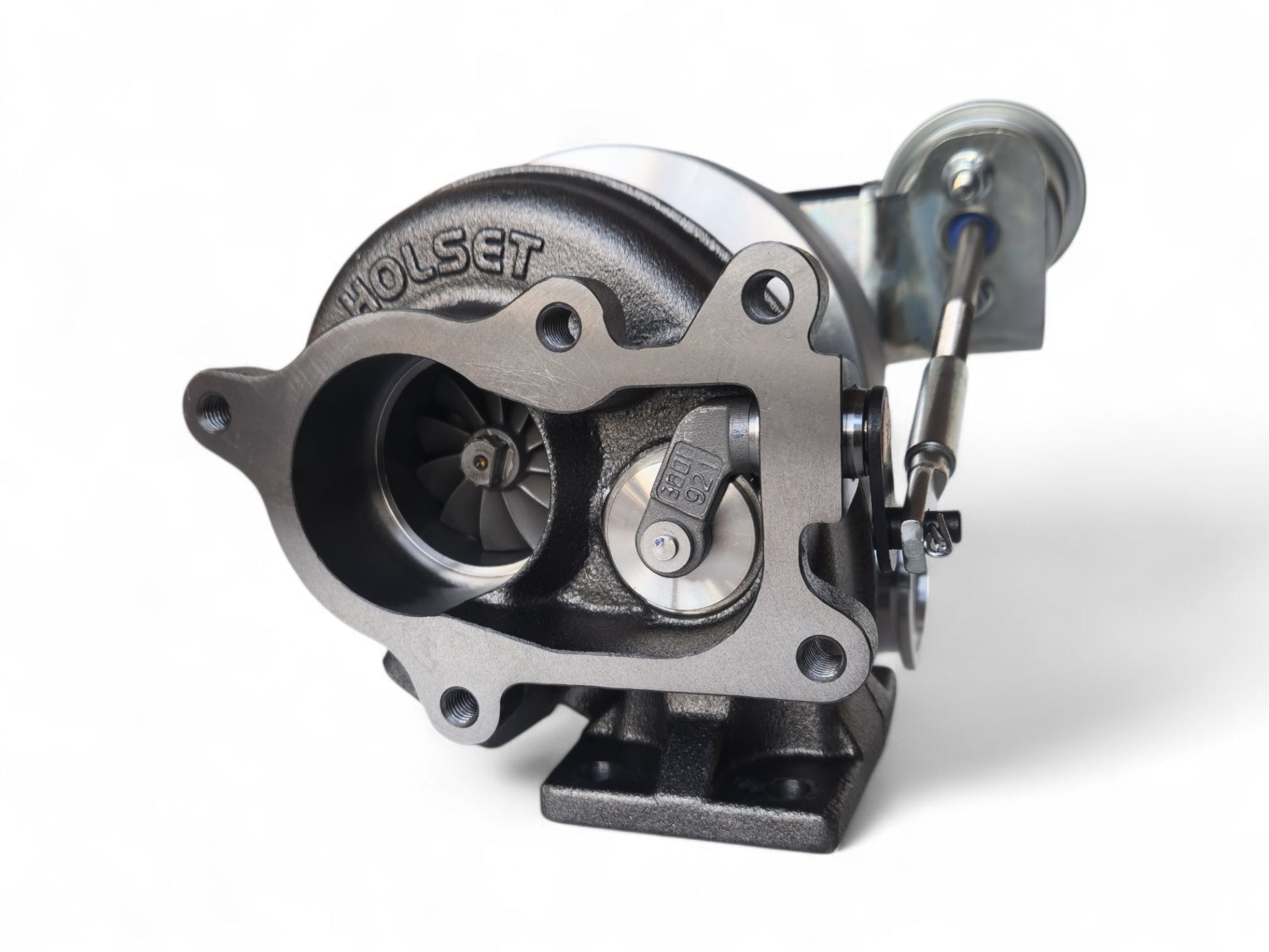

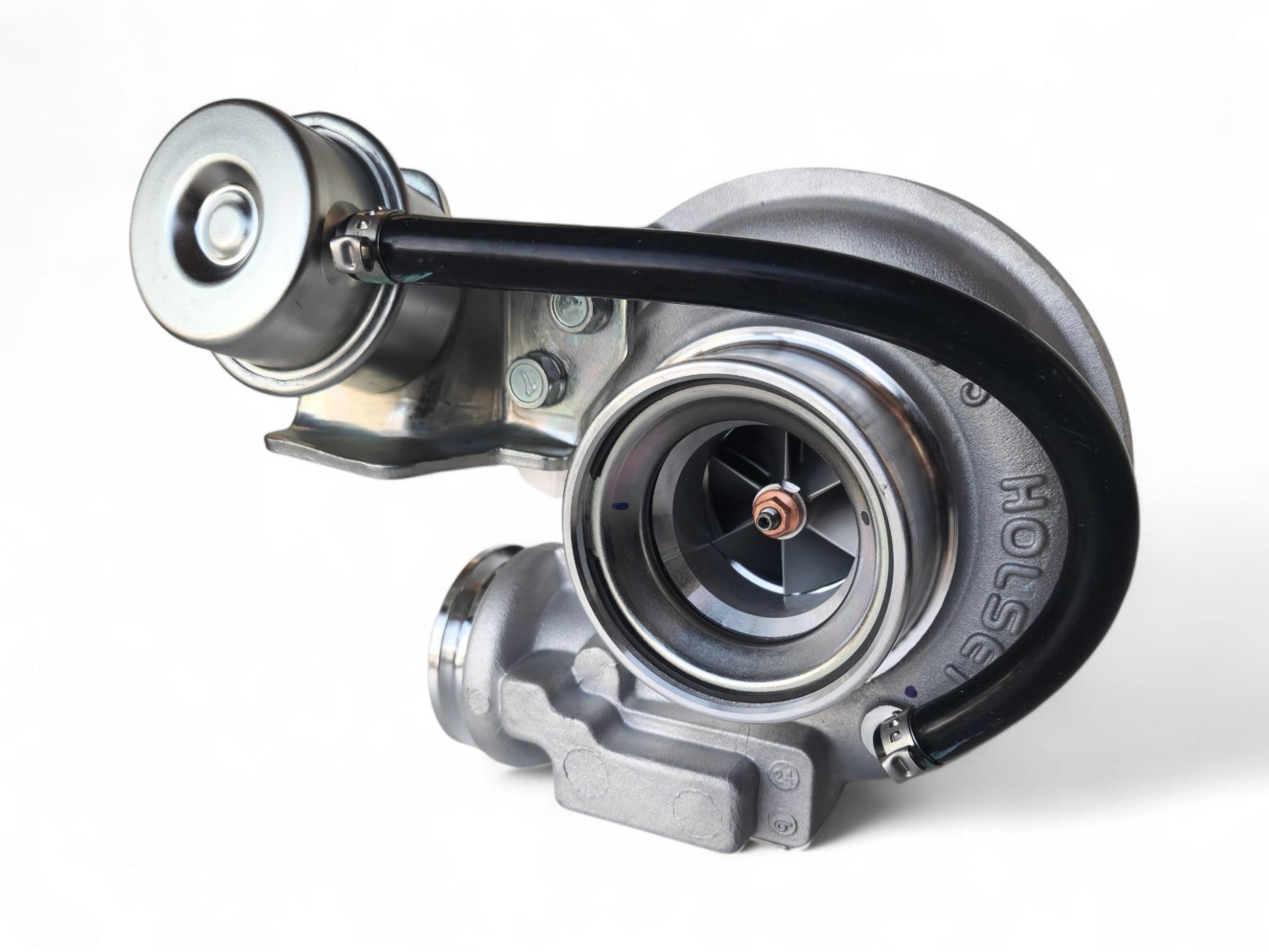

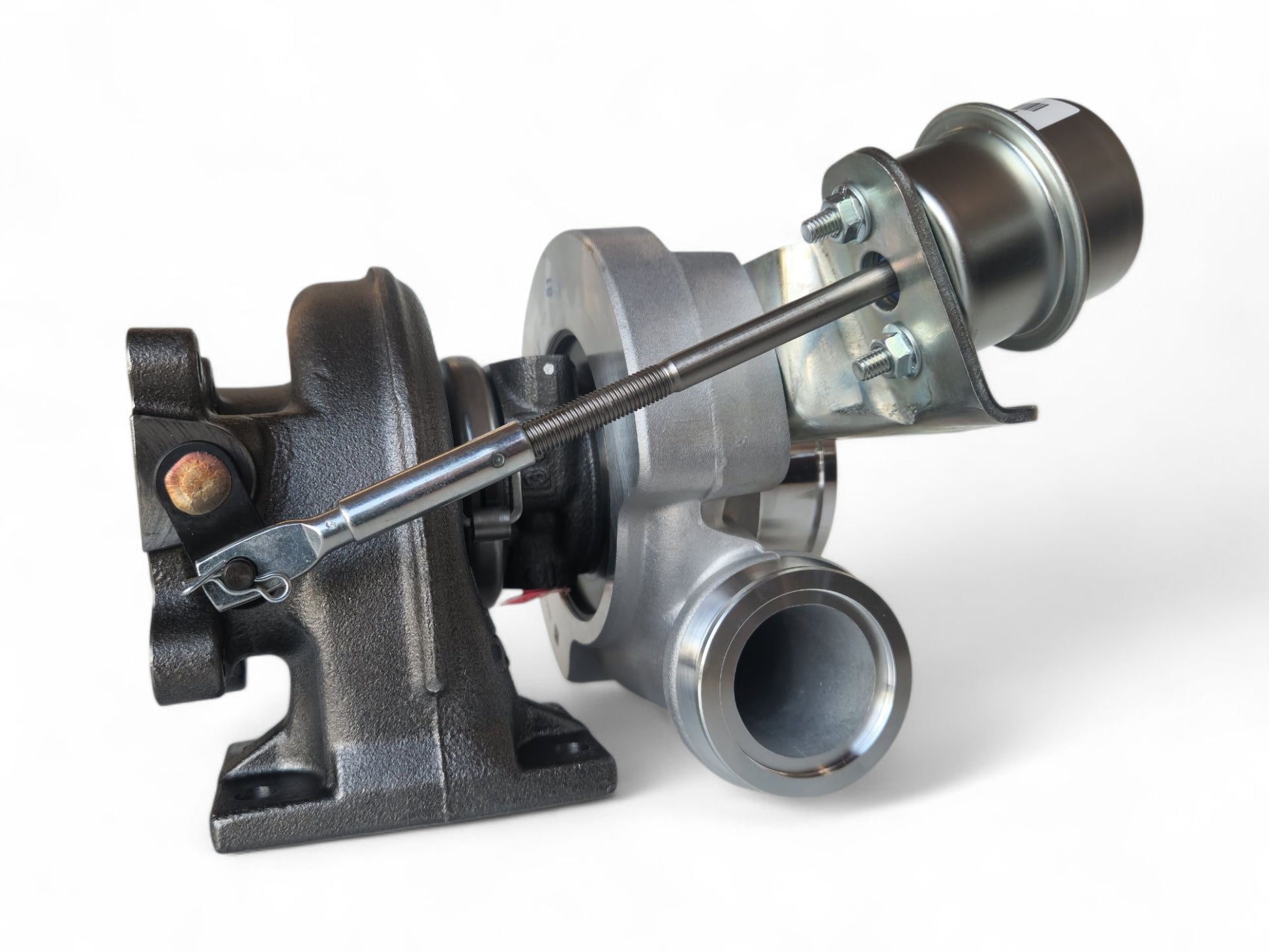

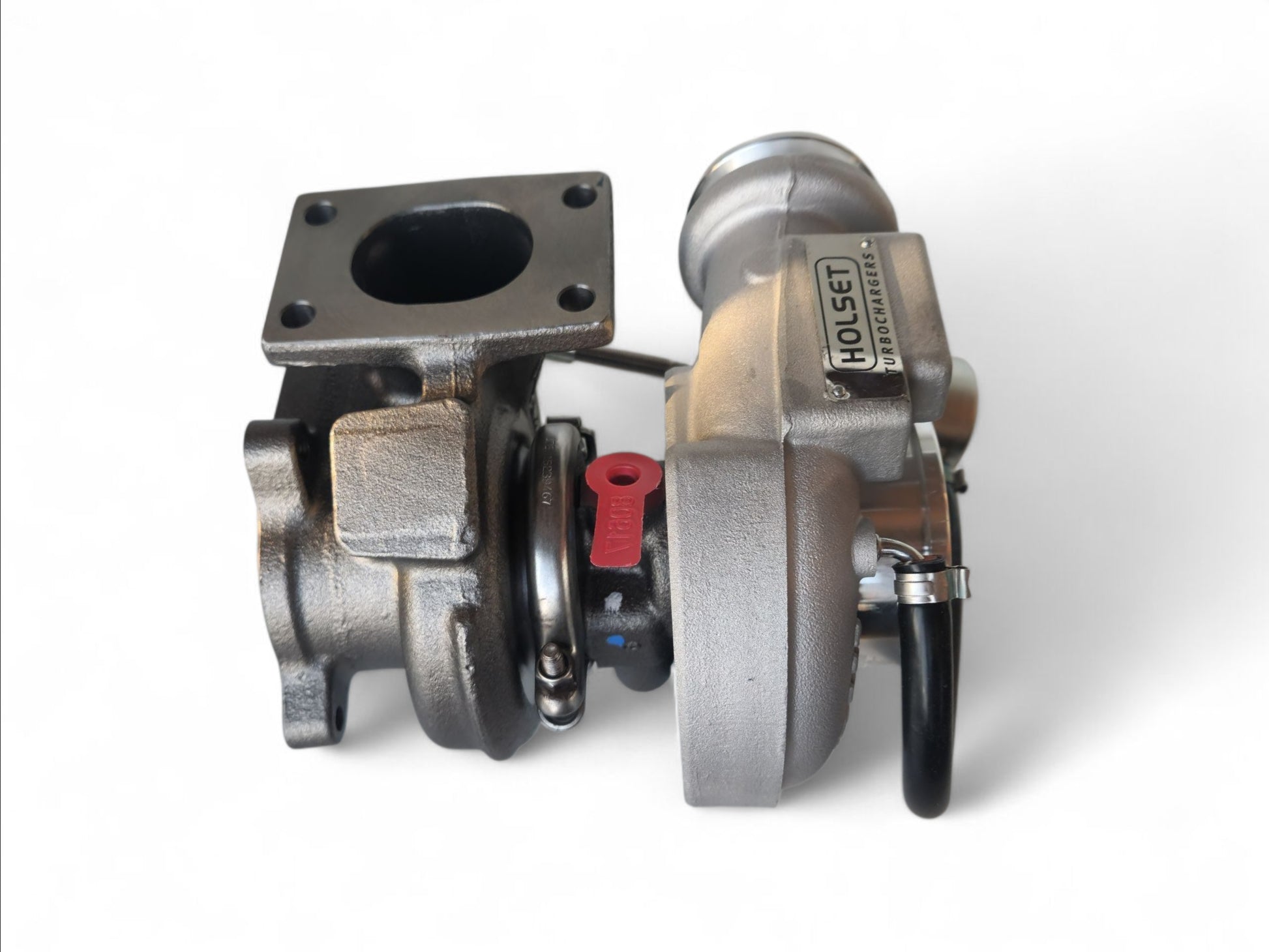

Holset HE221W - Turbine housing 7cm²

Holset HE221W / Turbine housing 7cm² (175-300hv)

• Compressor: 43,5 / 60mm
• Turbine: 53 / 45,7mm
• Turbine housing: 7cm²
• Inlet: T25
• Outlet: 5 bolt
• Wastegate: Yes
• Oil inlet: M10x1,25mm
• Oil outlet: T25 (bolt pattern: 38mm)

Lisätietoja:

• Max rpm: 175,000
• Max flow: 0,30 kg/sec (39 lbs/min)
• Max pressure: 4,0 bar
