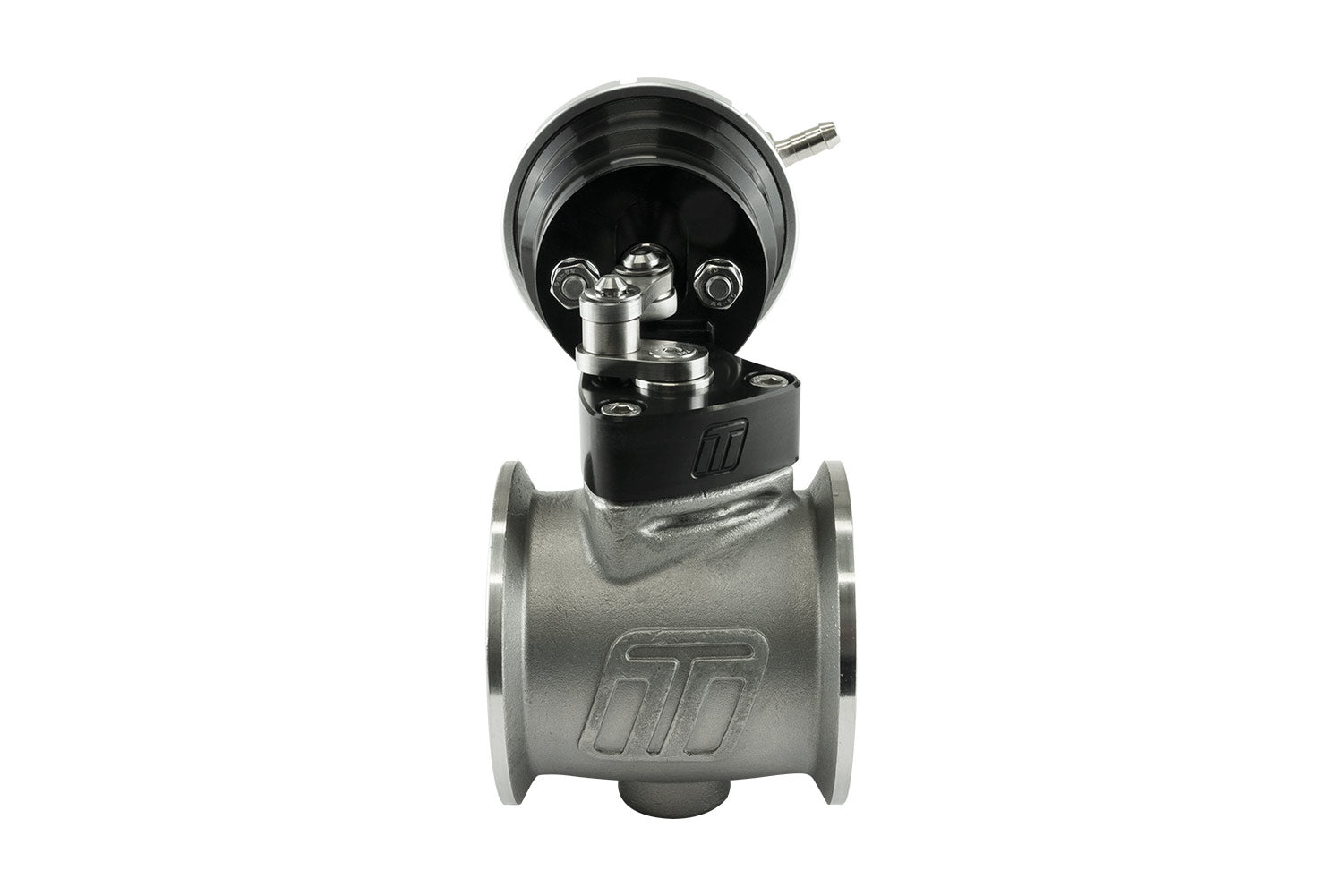

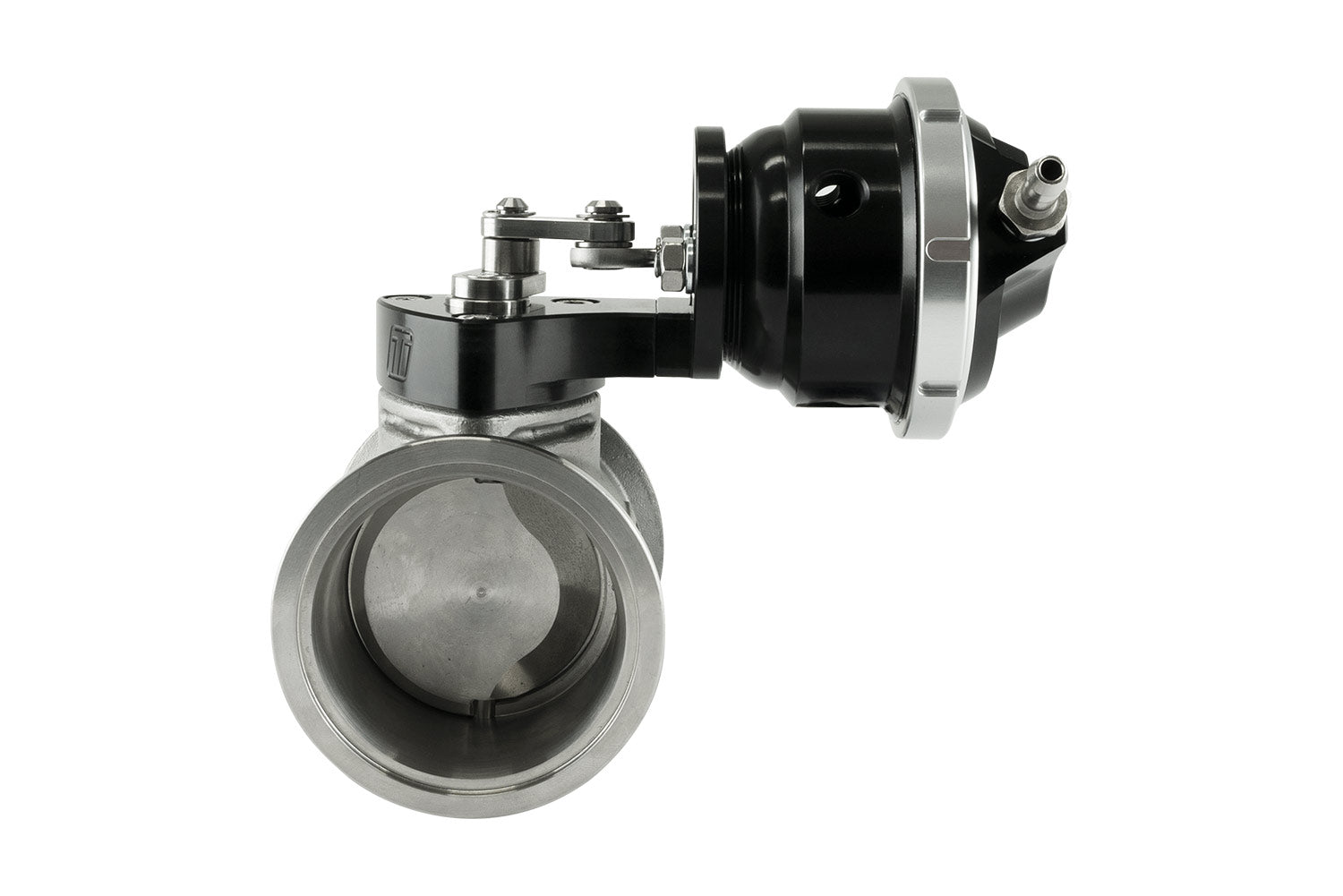

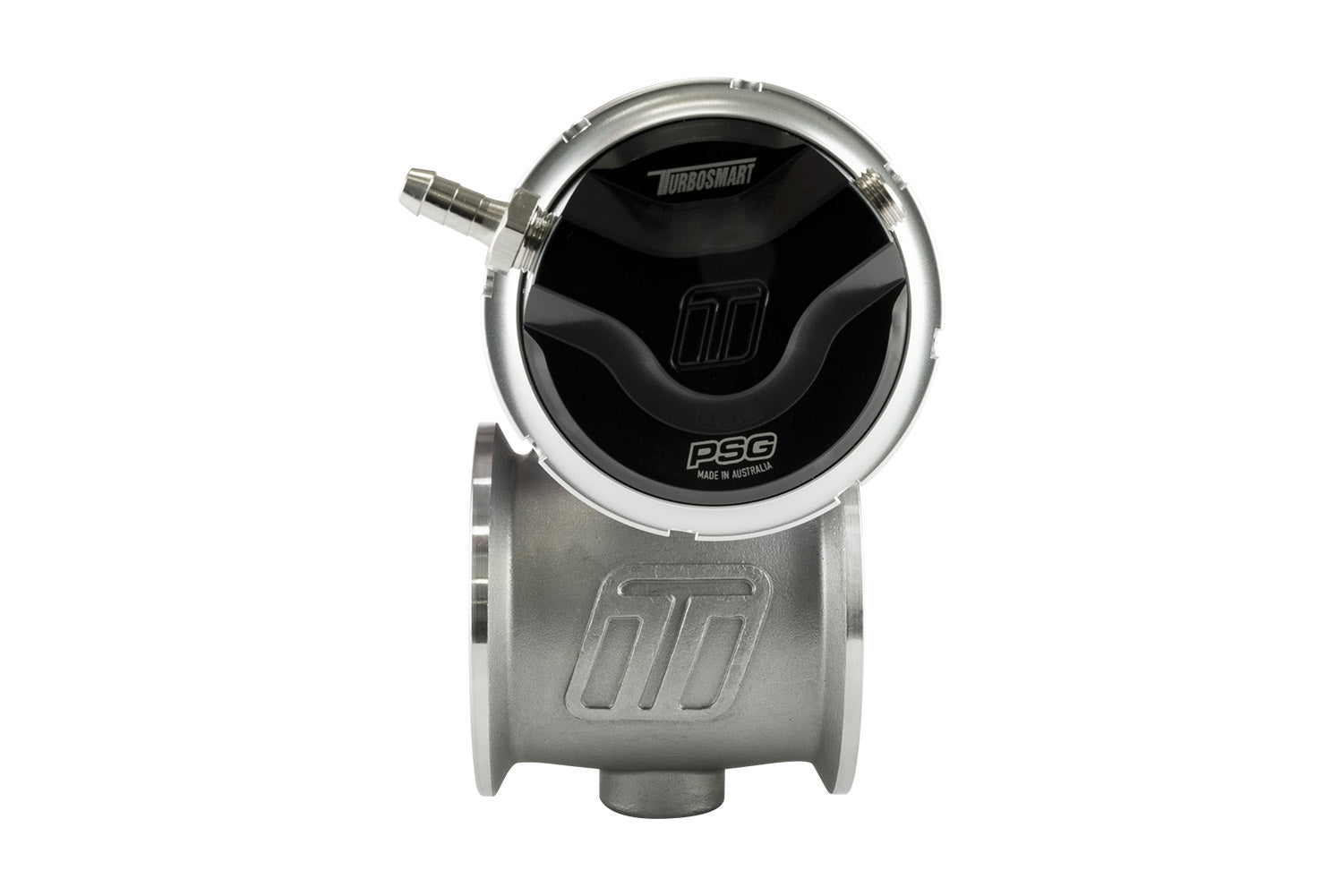

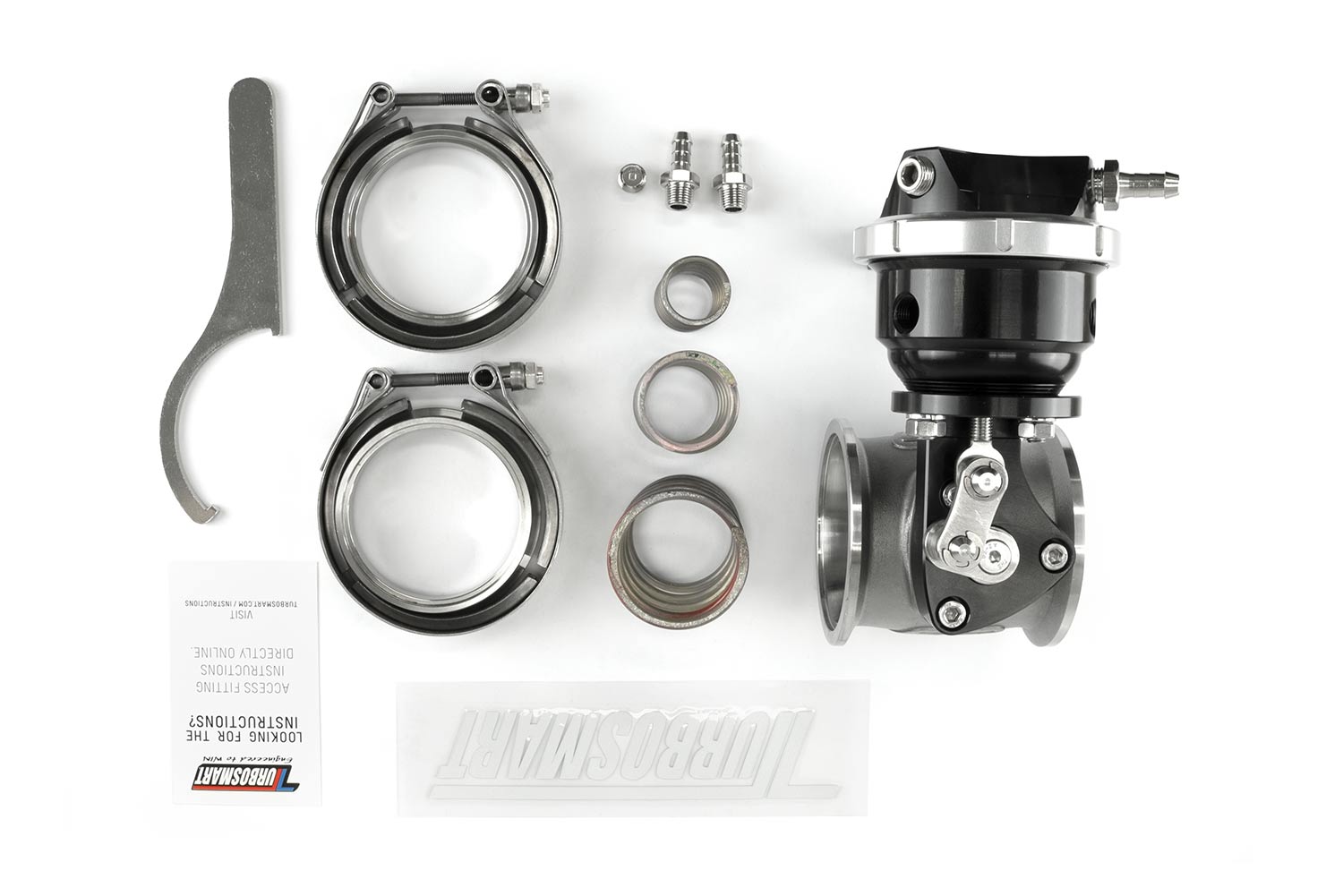

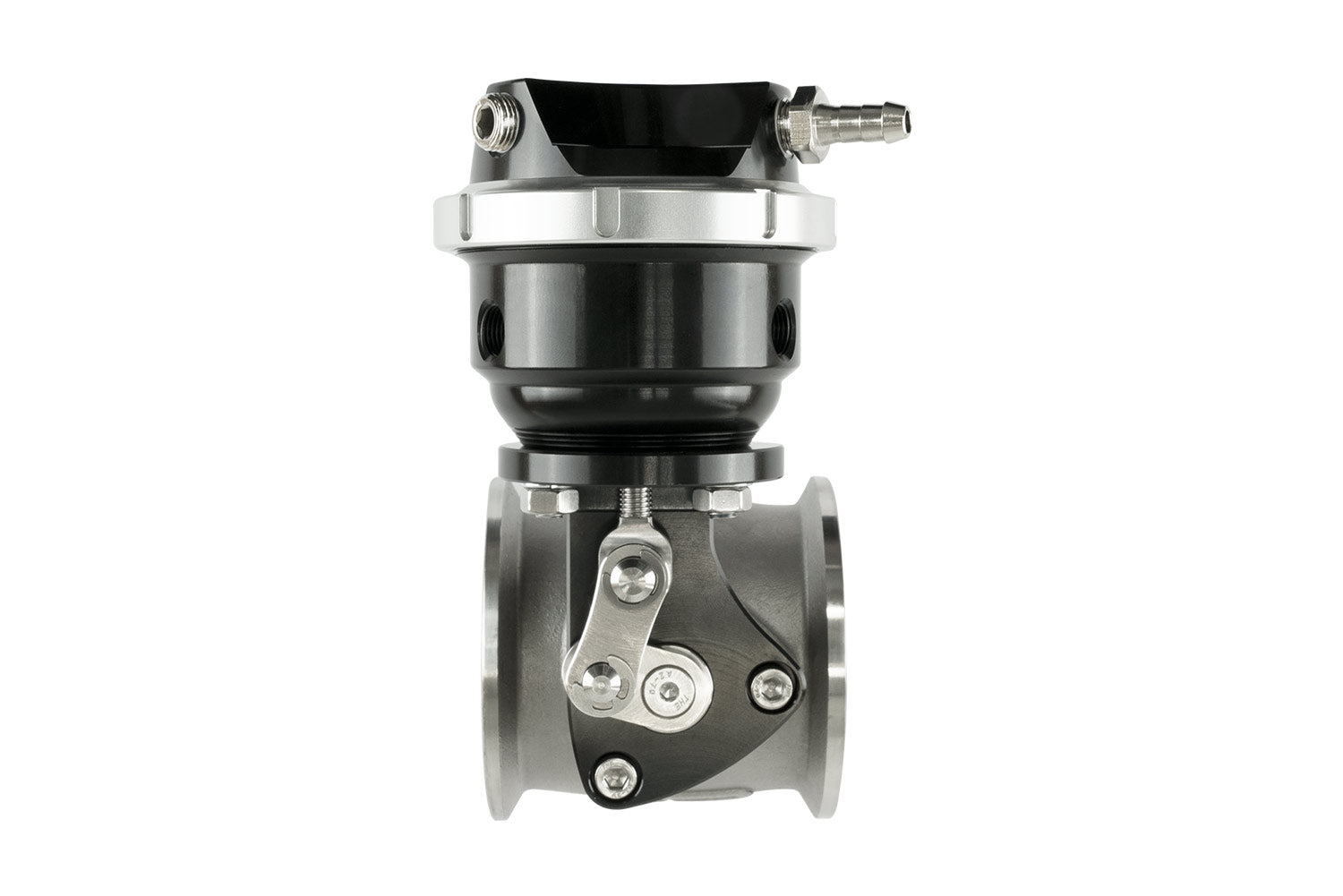

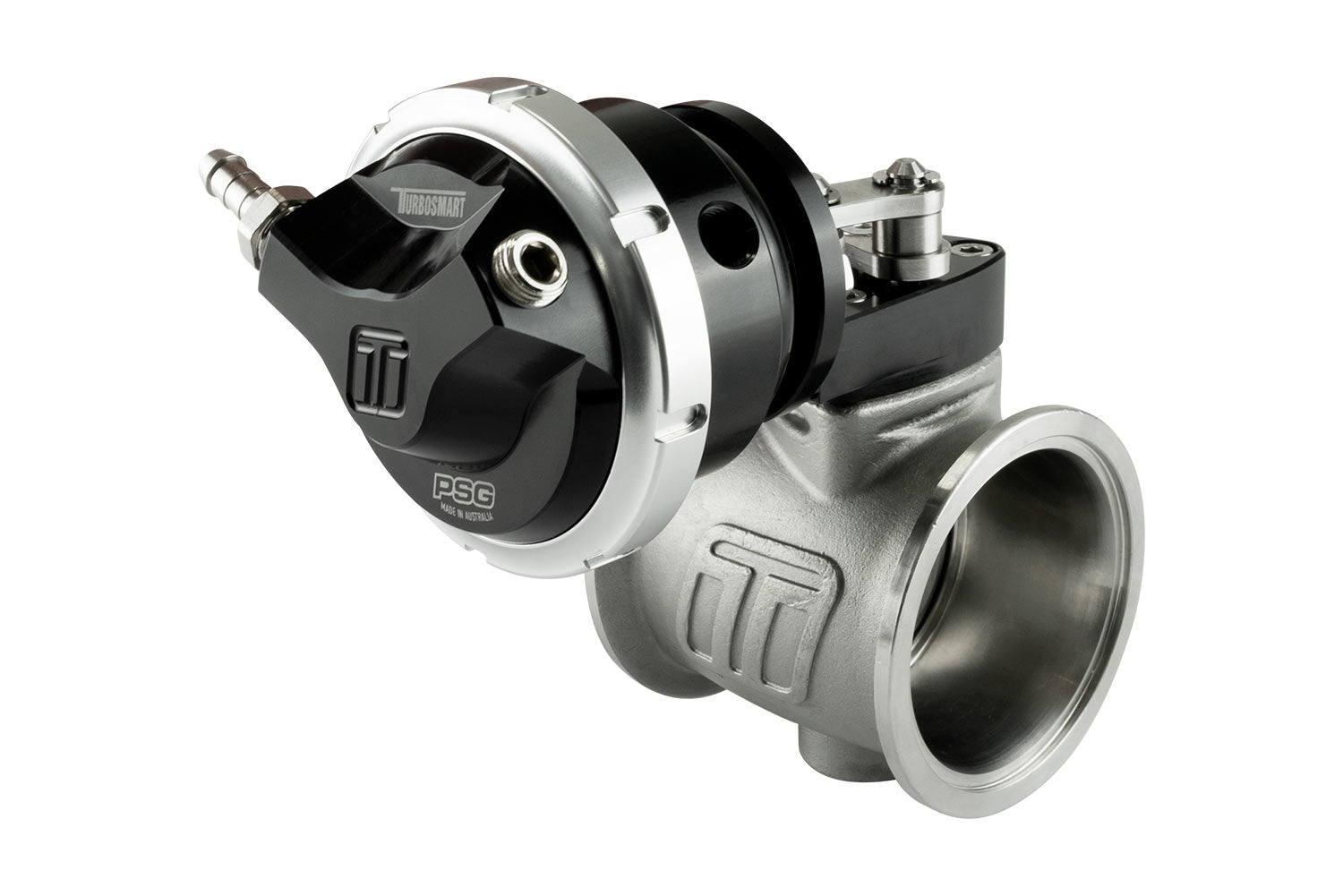

Turbosmart - Pneumatic StraightGate50 6psi External Wastegate (Black)

The StraightGate50 from Turbosmart is the world's highest-flowing 50mm external wastegate! The StraightGate50 is a zero-offset butterfly-style wastegate that allows enormous flow and almost linear control, and unparalleled boost control throughout the entire operating range.

The Boost-Based Pneumatic StraightGate50 takes the Multiple Award Winning eSG50 and simplifies control via a traditional boost-based actuator. The Self-Balancing nature of the StraightGate50 means a huge tuning window of over 5 times base spring pressure can be obtained! Pre-fitted with 6 psi springs to the GenV actuator featuring both single & Twin port control, the StraightGate50 is simple to use, and packed with performance, flow and features!

The Turbosmart StraightGate50 has been designed from the ground up & validated in-house to create a new level of control and flow, never seen in a wastegate before. The zero-offset butterfly valve is subjected to exhaust drive pressure equally on both halves of the valve, which pivots centrally, resulting in a self-balanced valve against any drive pressure. This self-balancing means less work is required to act against even the highest drive pressures, and a wider tuning window is possible, no matter how the valve is actuated. The increased flow is achieved through the efficiency of a straight-through valve versus a poppet-style valve where the exhaust gas must be turned 90 degrees by the valve.

Available in

• Electronic eSG50 StraightGate50

• Pneumatic (Boost-Based) pSG50 StraightGate50

• Pneumatic (Vacuum-Based) pSG50v StraightGate50

Features

• 50mm (1.97in) Butterfly Style Zero-Offset Valve

• 383.9 CFM / 10.87m3 per minute flow

• Stainless Steel (630) Butterfly and shaft

• Stainless Steel (347) Main Body

• Stainless Steel (Heat Treated 431) V-Band Clamps

• Aluminum (6262 T6 Anodized) Bracket & Actuator

• Turbosmart unique Locking Collar Ring

• Base Spring Options from 6psi to 42psi

• Suitable for Single or Twin Port Boost-Based Control

• Stainless Steel (N60) Linkages and Control Arm
