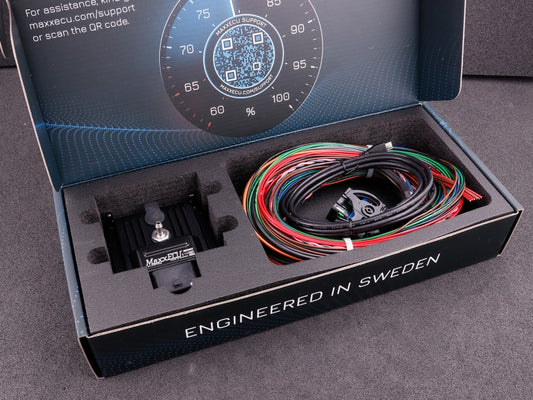

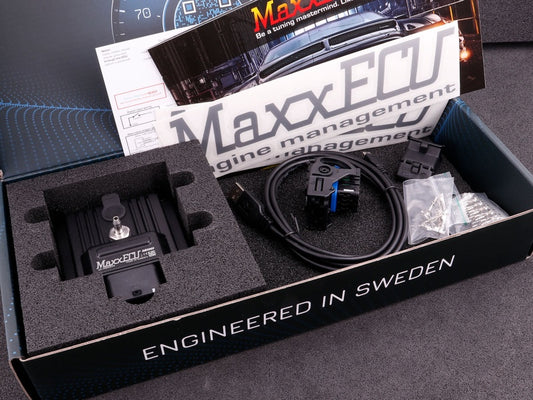

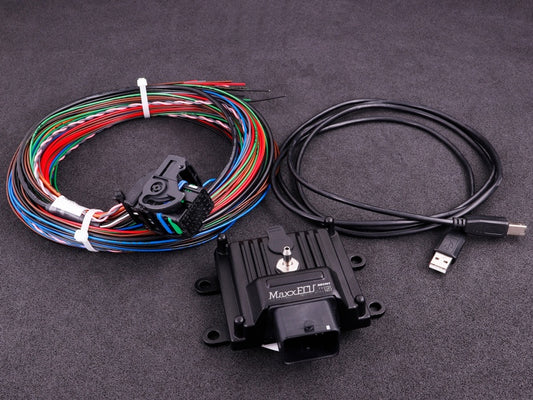

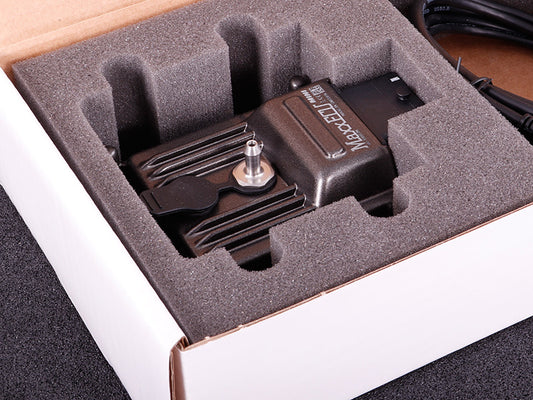

MaxxECU MINI

Advanced engine controller for projects, supports up to 4 cylinders sequential ignition and 8 cylinders with waste spark. Built-in MAP sensor allows faster and easier adjustment with boost pressure up to 3 bar / 43.5 psi. Easy commissioning with MTune PC software.

Selected features:

  • Waterproof aluminum housing
  • Three-stage boost pressure control
  • Traction control
  • Internal data logging
  • Gear shifting and starting assistance
  • Advanced warning system
  • Launch control
  • Built-in MAP sensor
  • 4 nozzle outputs (high impedance)
  • 4 ignition outputs
  • 4 additional programmable outputs (GPO)
  • 2 additional analog inputs (0-5 V)
  • 2 additional digital inputs (HALL)
  • CAN bus compatibility
