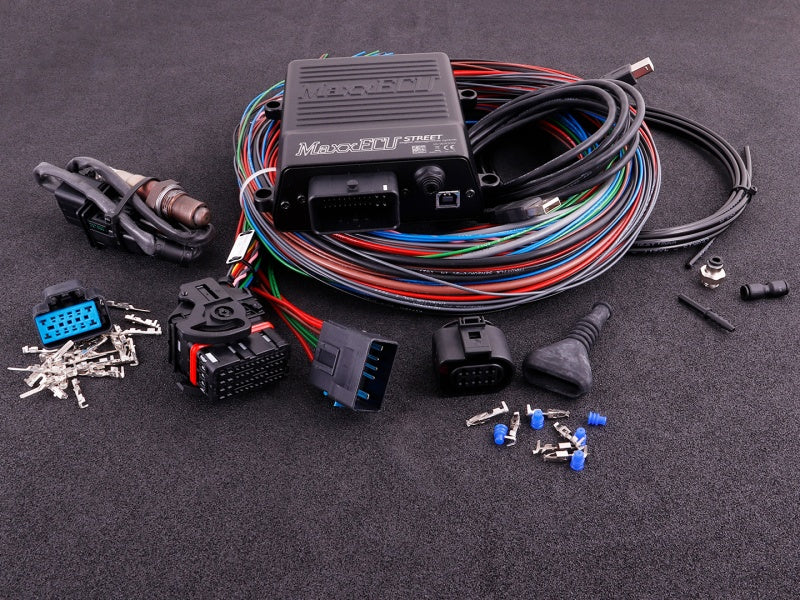

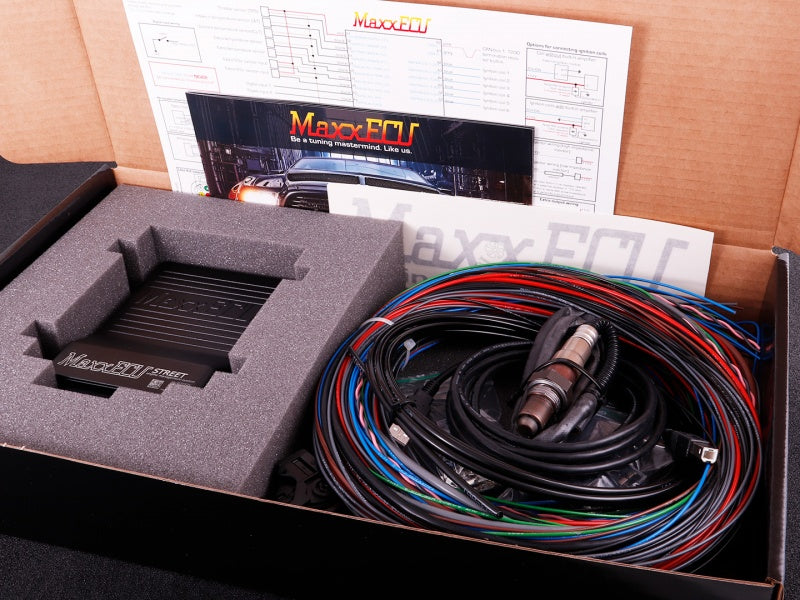

MaxxECU STREET - PREMIUM (ECU, wiring harness, accessories and LSU 4.2)

MaxxECU Street is a truly advanced engine management system. Easier and faster tuning with a built-in wideband lambda and MAP sensor, up to 3 bar / 43.5 psi.

What is MaxxECU Street suitable for?

• All 1-12 cylinder engines (4-stroke)

• Up to 6 cylinders fully sequential

• Up to 12 cylinders with waste spark

MaxxECU Street inputs:

• Intake air temperature (IAT)

• Water temperature (CLT)

• Throttle Position Sensor (TPS)

• Lambda (WBO) sensor. Uses a sensor directly connected to the ECU without additional electronics. Supports Bosch LSU 4.2, 4.9

• 2 trigger inputs, VR or digital

• 2 additional temperature sensor inputs

• 2 digital inputs for e.g. rotation speeds (HALL) or switches

• 6 additional 0-5V sensor inputs. Can be used for additional sensors such as fuel/oil pressure measurement.

• Built-in MAP sensor, up to 3 bar / 43.5 psi

MaxxECU Street outputs:

• 6 nozzle outputs (for high-ohm)

• 6 ignition outputs, 5V pulse control for ignition amplifiers or CDI devices.

• 4 additional outputs for additional features. Can be used to control practically anything. Fuel pumps, idle control, boost solenoids, nitrous, gear lights, fans, warning lights, etc. GPO 1-3 (2A), GPO 8 (5A)

Other features:

• CAN bus

• USB connection for MTune adjustment

• 8 MB of memory for internal logging, up to 1000 Hz

• Supply voltage 8-22V

• ARM Cortex-M3 120MHz processor

• Weight: 520g

• Aluminum case

Check out MaxxECU Street on the manufacturer's website:

https://www.maxxecu.com/products/street
