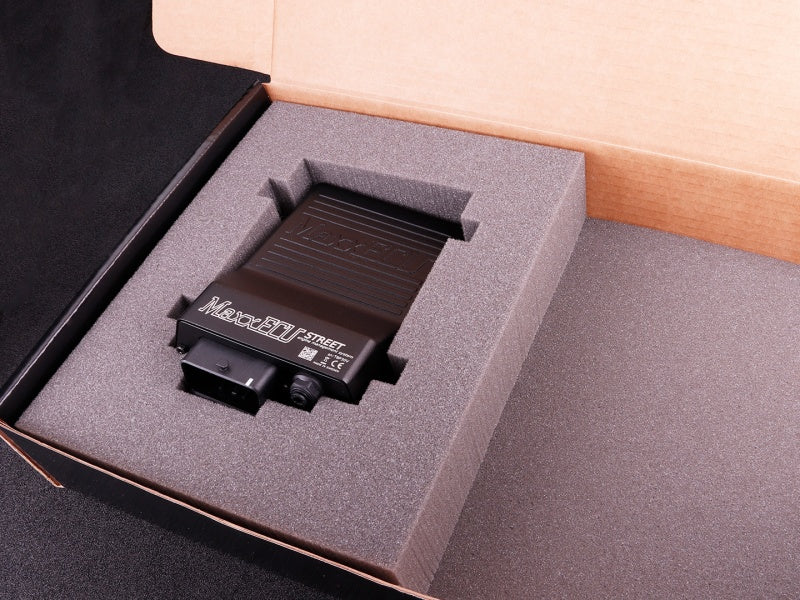

MaxxECU STREET - ECU (ECU without accessories)
MaxxECU STREET - ECU (ECU without accessories)
SKU:1814
Couldn't load pickup availability
Klarna
Google Pay
PayPal
MaxxECU Street is a truly advanced engine management system. Easier and faster tuning with a built-in wideband lambda and MAP sensor, up to 3 bar / 43.5 psi.
What is MaxxECU Street suitable for?
-
All 1-12 cylinder engines (4-stroke)
-
Up to 6 cylinders fully sequential
-
Up to 12 cylinders with waste spark
MaxxECU Street inputs:
-
Intake air temperature (IAT)
-
Water temperature (CLT)
-
Throttle Position Sensor (TPS)
-
Lambda (WBO) sensor. Uses a sensor directly connected to the ECU without additional electronics. Supports Bosch LSU 4.2, 4.9
-
2 trigger inputs, VR or digital
-
2 additional temperature sensor inputs
-
2 digital inputs for e.g. rotation speeds (HALL) or switches
-
6 additional 0-5V sensor inputs. Can be used for additional sensors such as fuel/oil pressure measurement.
-
Built-in MAP sensor, up to 3 bar / 43.5 psi
MaxxECU Street outputs:
-
6 nozzle outputs (for high-ohm)
-
6 ignition outputs, 5V pulse control for ignition amplifiers or CDI devices.
-
4 additional outputs for additional features. Can be used to control practically anything. Fuel pumps, idle control, boost solenoids, nitrous, gear lights, fans, warning lights, etc. GPO 1-3 (2A), GPO 8 (5A)
Other features:
-
CAN bus
-
USB connection for MTune adjustment
-
8 MB memory for internal logging, up to 1000 Hz
-
Supply voltage 8-22V
-
ARM Cortex-M3 120MHz processor
-
Weight: 520g
-
Aluminum case
Check out MaxxECU Street on the manufacturer's website:
