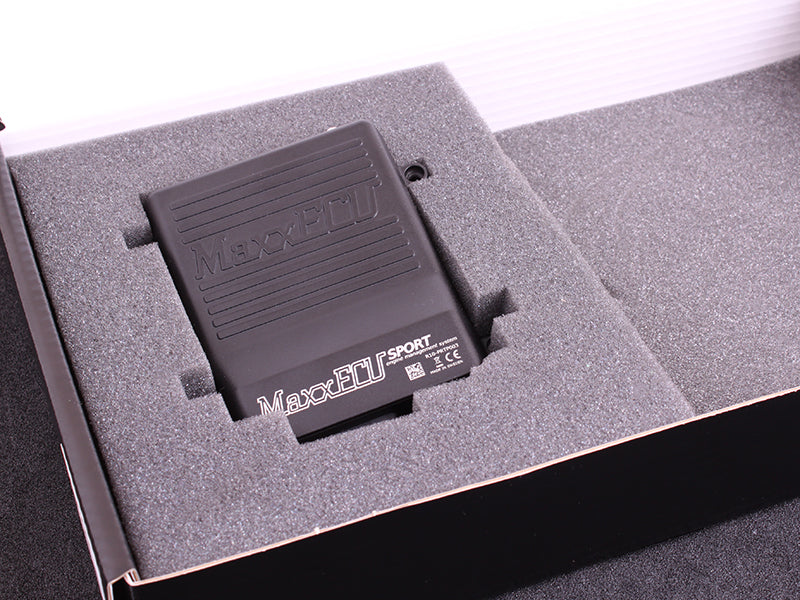

MaxxECU SPORT - ECU (ECU without accessories)

MaxxECU Sport is a truly advanced engine management system. Easier and faster tuning with a built-in wideband lambda and MAP sensor, up to 3 bar / 43.5 psi.

What is MaxxECU Sport suitable for?

• All 1-12 cylinder engines (4-stroke)
• Up to 6 cylinders fully sequential
• Up to 12 cylinders with waste spark

MaxxECU Sport inputs:

• Intake air temperature (IAT)
• Water temperature (CLT)
• Throttle Position Sensor (TPS)
• Lambda (WBO) sensor. Uses a sensor directly connected to the ECU without additional electronics. Supports Bosch LSU 4.2, 4.9
• 2 trigger inputs, VR or digital
• 2 additional temperature sensor inputs
• 2 digital inputs for e.g. rotation speeds (HALL) or switches
• 2 additional 0-5V sensor inputs. Can be used for additional sensors such as fuel/oil pressure measurement.
• Built-in MAP sensor, up to 3 bar / 43.5 psi

MaxxECU Sport outputs:

• 6 nozzle outputs (for low or high impedance)
• 6 ignition outputs, 5V pulse control for ignition amplifiers or CDI devices.
• 7 additional outputs for additional features. Can be used to control practically anything. Fuel pumps, idle control, boost solenoids, nitrous, gear lights, fans, warning lights, etc. GPO 1-3 (2A), GPO 8 (5A)
• 2 additional outputs (electric motor control, e.g. for electric throttle motor)

Other features:

• CAN bus
• USB connection for MTune adjustment
• Bluetooth for connecting to mobile devices using MDash
• 8 MB of memory for internal logging, up to 1000 Hz
• Supply voltage 8-22V
• ARM Cortex-M3 120MHz processor
• Weight: 590g
• Aluminum case
