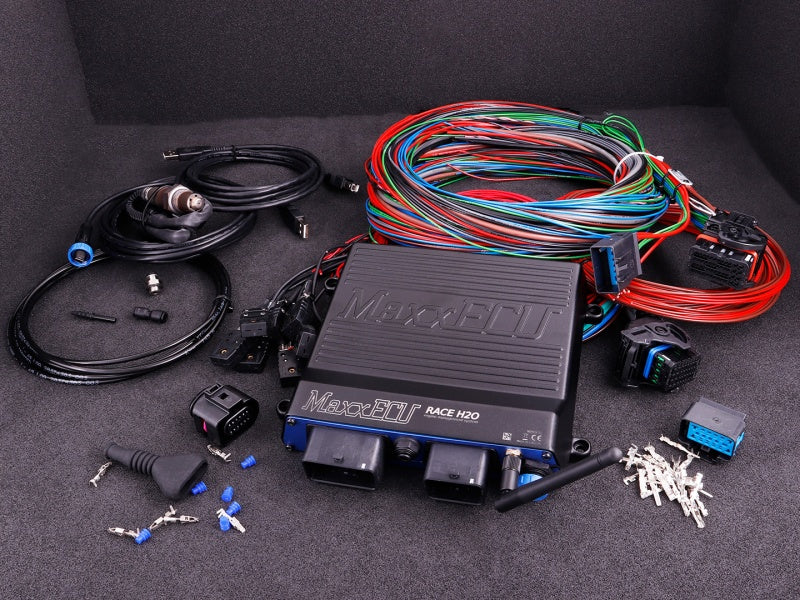

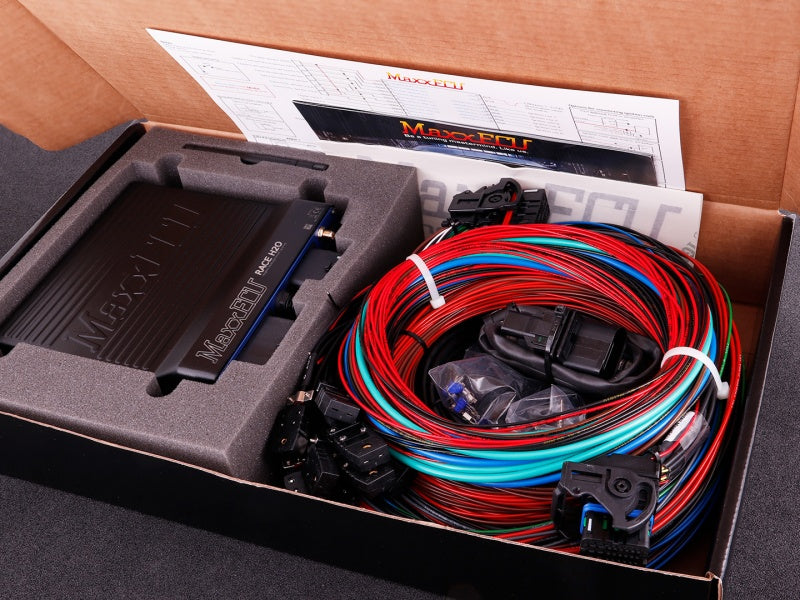

MaxxECU RACE - H2O PREMIUM (ECU, wiring harness, accessories and LSU 4.2)

MaxxECU Race is a highly versatile engine management system for high-performance engines. Easier and faster tuning with a built-in wideband lambda and MAP sensor, up to 3 bar / 43.5 psi.

What is MaxxECU Race suitable for?

• All 1-12 cylinder engines (4-stroke)

• Up to 8 cylinders fully sequential

• Up to 12 cylinders with waste spark

MaxxECU Race inputs:

• Intake air temperature (IAT)

• Water temperature (CLT)

• Throttle Position Sensor (TPS)

• Lambda (WBO) sensor. Uses a sensor directly connected to the ECU without additional electronics. Supports Bosch LSU 4.2, 4.9

• 2 trigger inputs, VR or digital

• 2 additional temperature sensor inputs

• 2 knock sensor inputs

• 4 digital inputs for e.g. rotation speeds (HALL) or switches

• 6 additional 0-5V sensor inputs. Can be used for additional sensors such as fuel/oil pressure measurement.

• 8 EGT exhaust heat inputs in their own connector (k-type connectors in separate wiring harness)

• Built-in MAP sensor, up to 3 bar / 43.5 psi

MaxxECU Race outputs:

• 8 nozzle outputs (for low or high impedance)

• 8 ignition outputs, 5V pulse control for ignition amplifiers or CDI devices.

• 9 additional outputs for additional features. Can be used to control practically anything. Fuel pumps, idle control, boost solenoids, nitrous, gear lights, fans, warning lights, etc. GPO 1-8,10 (2A), GPO 9 (5A)

• 4 additional outputs (electric motor control, e.g. for electric throttle motor)

• 2 extra +12V control outputs (e.g. BMW S54 vanos) GPO 11-14 (2A)

Other features:

• CAN bus for expansion modules, OEM vehicle CAN, OBDII

• USB connection for MTune adjustment

• Bluetooth for connecting to mobile devices using MDash

• 8 MB memory for internal logging, up to 1000 Hz

• Supply voltage 8-22V

• ARM Cortex-M3 120MHz processor

• Weight: 880g

• Aluminum case
