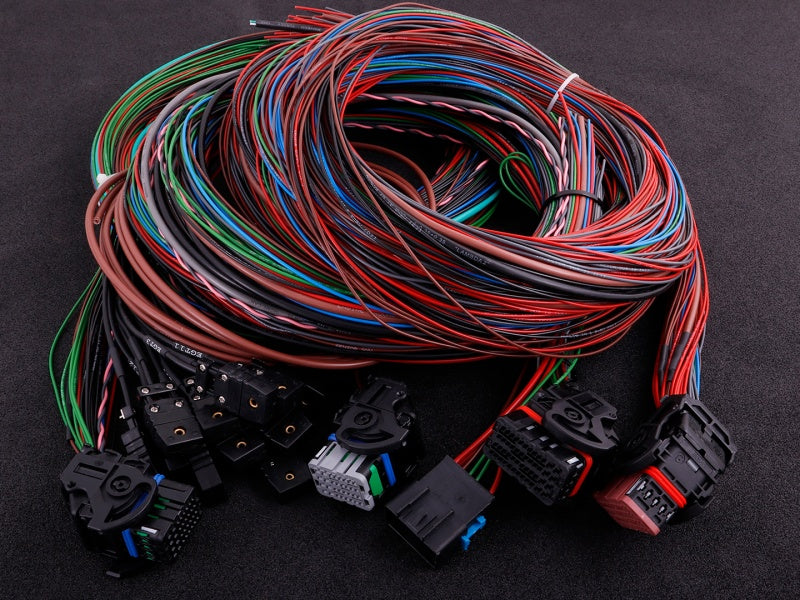

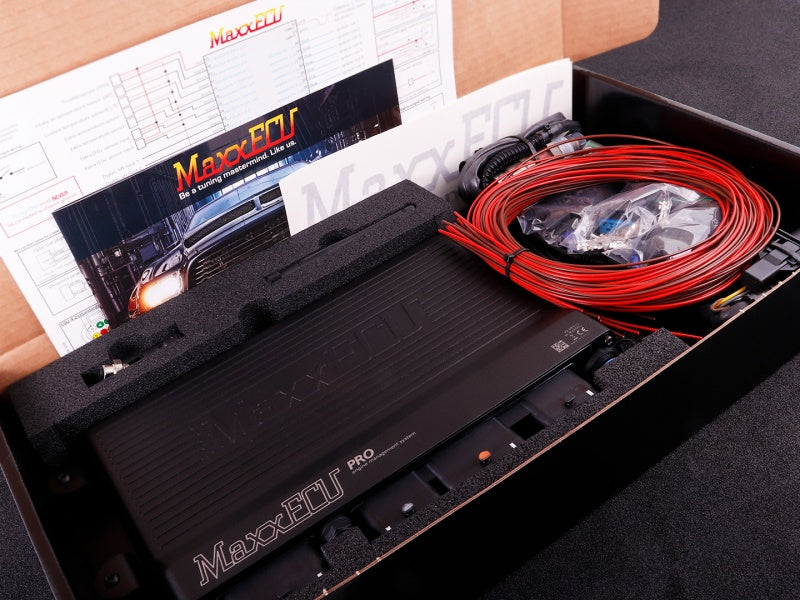

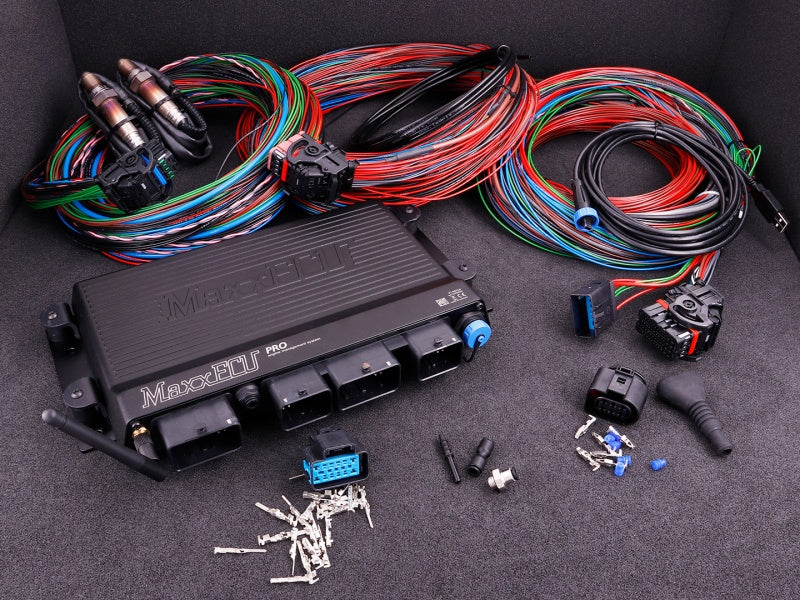

MaxxECU PRO - PREMIUM (ECU, wiring harness, accessories and LSU 4.2)

MaxxECU Pro is a highly advanced engine management system for high-performance racing engines. Winning or losing on the track depends on the details. That's why MaxxECU Pro can use almost any information - Tune to perfection

What is MaxxECU Pro suitable for?

• All 1-12 cylinder engines (4-stroke)
• Up to 12 cylinders fully sequential
• Up to 12 cylinders with waste spark

MaxxECU Pro inputs:

• Intake air temperature (IAT)
• Water temperature (CLT)
• Throttle Position Sensor (TPS)
• Dual wideband lambda control for LSU 4.2/4.9 sensors. Uses sensor directly connected to ECU without additional electronics. Supports Bosch LSU 4.2, 4.9
• 2 trigger inputs, VR or digital
• 6 additional temperature sensor inputs
• 2 knock sensor inputs
• 10 digital inputs for e.g. rotation speeds (HALL) or switches
• 16 additional 0-5V sensor inputs. Can be used for additional sensors such as fuel/oil pressure measurement.
• 12 EGT exhaust heat inputs in their own connector (k-type connectors in separate wiring harness)
• Built-in MAP sensor, up to 3 bar / 43.5 psi

MaxxECU Pro outputs:

• 16 nozzle outputs (for low or high impedance)
• 12 ignition outputs, 5V pulse control for ignition amplifiers or CDI devices.
• 9 additional outputs for additional features. Can be used to control practically anything. Fuel pumps, idle control, boost solenoids, nitrous, gear lights, fans, warning lights, etc. GPO 1-8,10 (2A), GPO 9 (5A)
• 30 additional outputs (8 of which are +12V controlled.) GPO 1-8 (2A), GPO 9/10 (5A), GPO 11-14(2A), GPO 15-23 (12V sourcing, 4A), GPO 23-30 (1.5A)
• 2 extra +12V control outputs (e.g. BMW S54 vanos) GPO 11-14 (2A)
• 2 electric throttle controls

Other features:

• CAN bus for expansion modules, OEM vehicle CAN, OBDII
• USB connection for MTune adjustment waterproof mini-USB connector
• Bluetooth for connecting to mobile devices using MDash
• 8 MB of memory for internal logging, up to 1000 Hz. 3 additional processors for trigger, nozzle and exhaust heat handling.
• Supply voltage 8-22V
• ARM Cortex-M3 120MHz processor
• Weight: 1137g
• Waterproof aluminum housing with vibration-damping rubbers
