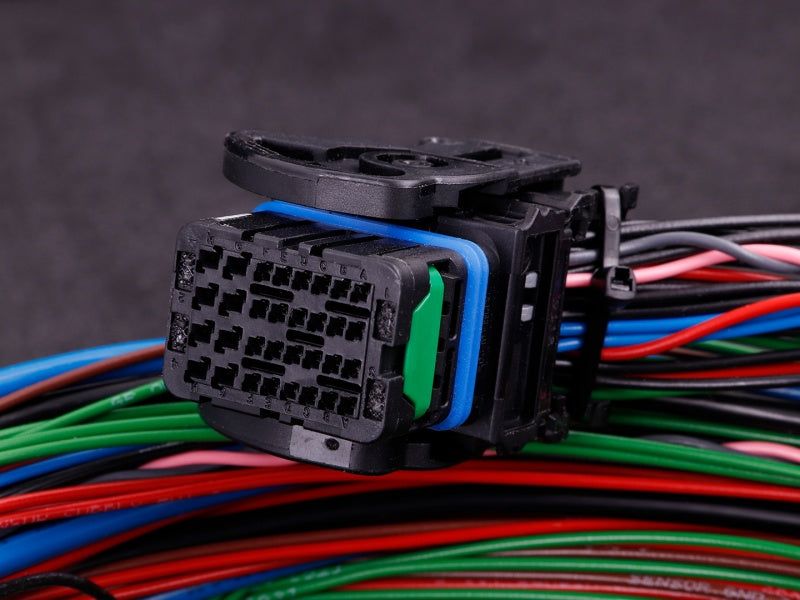

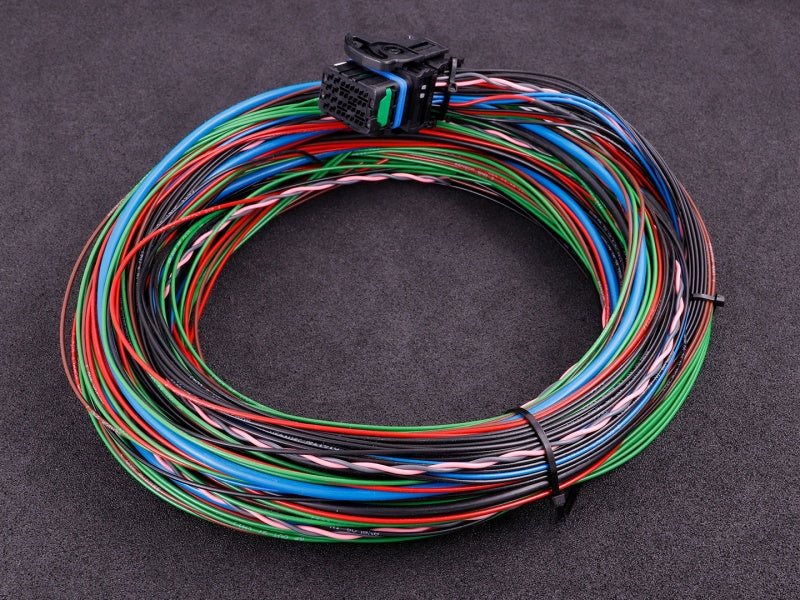

MaxxECU - PRO Wiring harness (connector 4)

Expands the MaxxECU PRO engine controller with additional inputs and outputs, a second CAN bus, and knock sensor inputs.

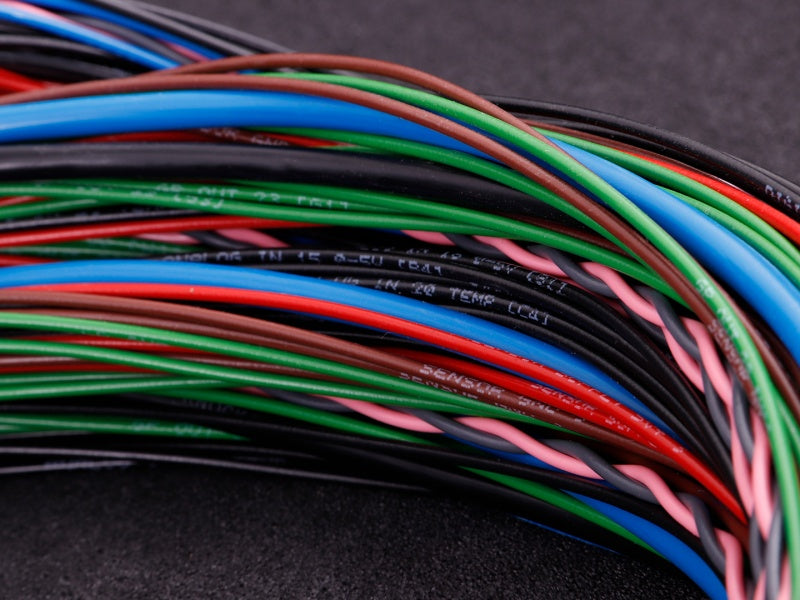

Flying leads, made from thin-walled, high-quality automotive cables with printed markings for easy installation.

Expandable functions:

• CAN bus 2
• Analog outputs 0–5 V: 1 and 2
• Analog inputs 0–5 V: 13–18
• Analog temperature inputs: 19–22
• Digital inputs (switch): 8–11
• 5V power supply for sensors 3
• Adjustable sensor power supply (+5–10 V, software adjustable)
• Sensor grounding (2 pcs)
• GPO outputs 23–30 (ground)
• Knock sensor inputs: KNOCK 1, KNOCK 2 and KNOCK GND
