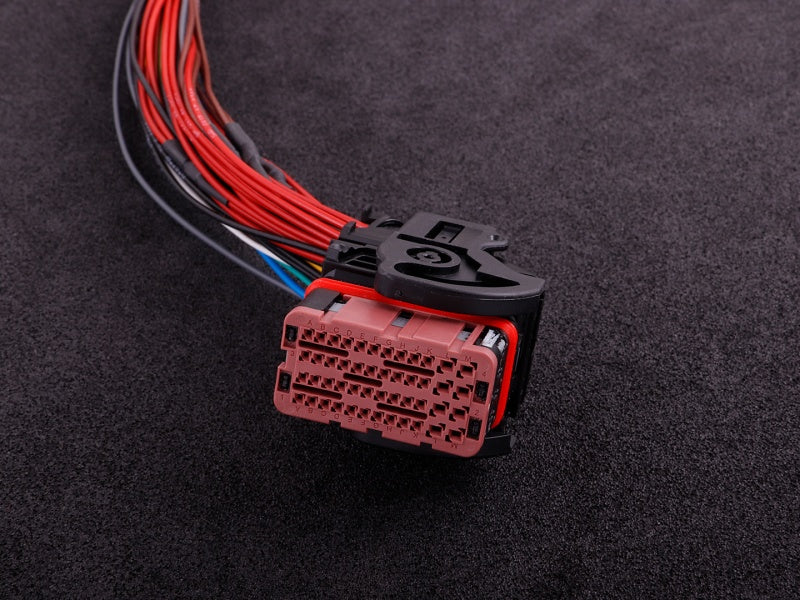

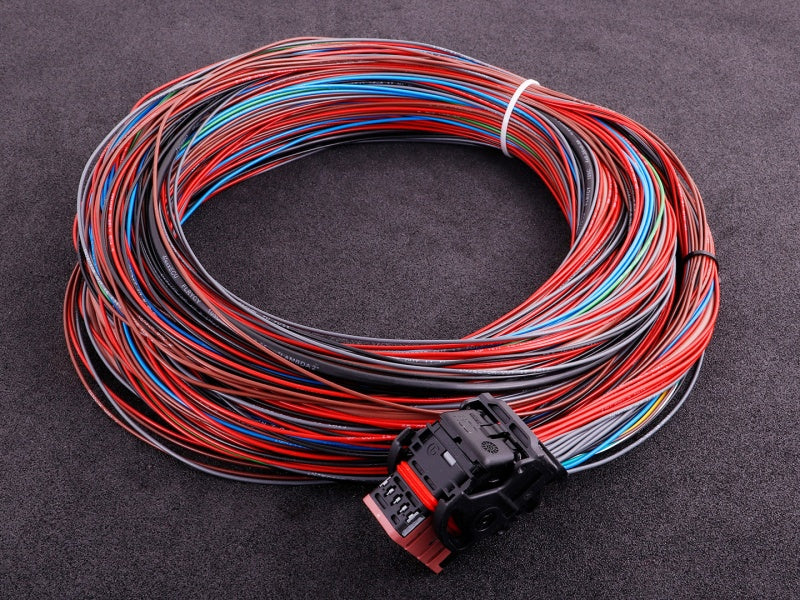

MaxxECU - PRO Wiring harness (connector 3)

Expands the MaxxECU PRO engine controller with an electronic throttle, support for a second broadband lambda, digital inputs and other additional functions.

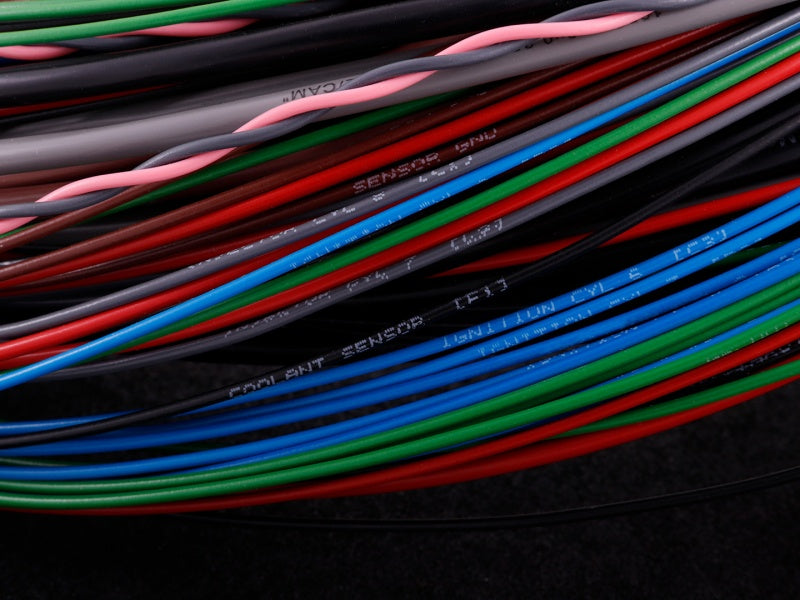

Flying leads, made from thin-walled, high-quality automotive cables with printed markings for easy installation.

Expandable functions:

• Digital/VR inputs (DIN) 4 and 5
• Digital inputs (DIN) 6 and 7
• Broadband lambda 2 + GPO 10 (heating function)
• Analog inputs 0–5 V: 5–12
• GPO outputs 15–22 (+12 V)
• Electric throttle motor outputs 1 and 2
• Nozzle outputs 9–16
• Ignition outputs 9–12
• KEY_IN (+12 V), +12 V ECU 2, engine ground 2
• Sensor ground + 5 V power supply 2
