MaxxECU - PDM20 Power Distribution Module

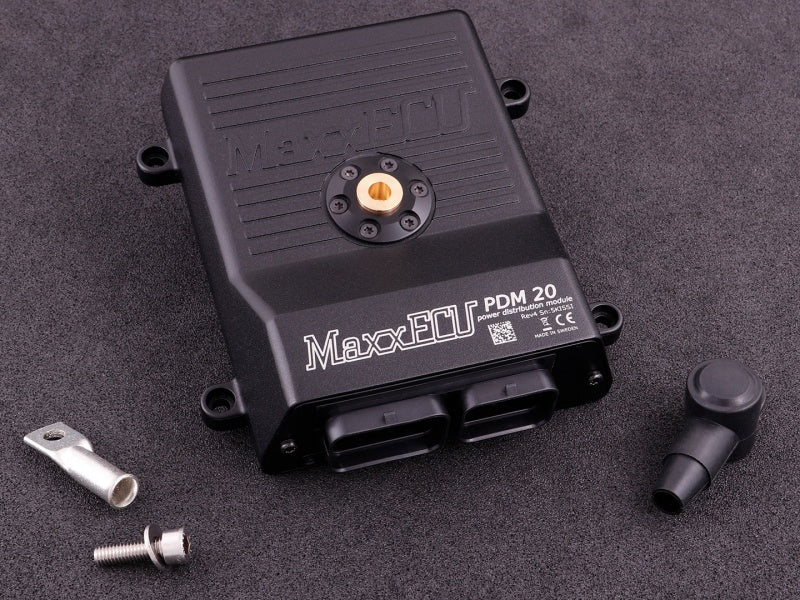

The MaxxECU PDM20 is an advanced Power Distribution Module for MaxxECU units and is designed to replace fuses and relays in a modern way.

MaxxECU PDM20 general

• -40 to +125 deg C temperature range
• Reverse polarity protection
• 6-22V operating voltage
• 32-bit ARM Cortex-M3 CPU
• 132x140x42mm (excluding protruding connectors)

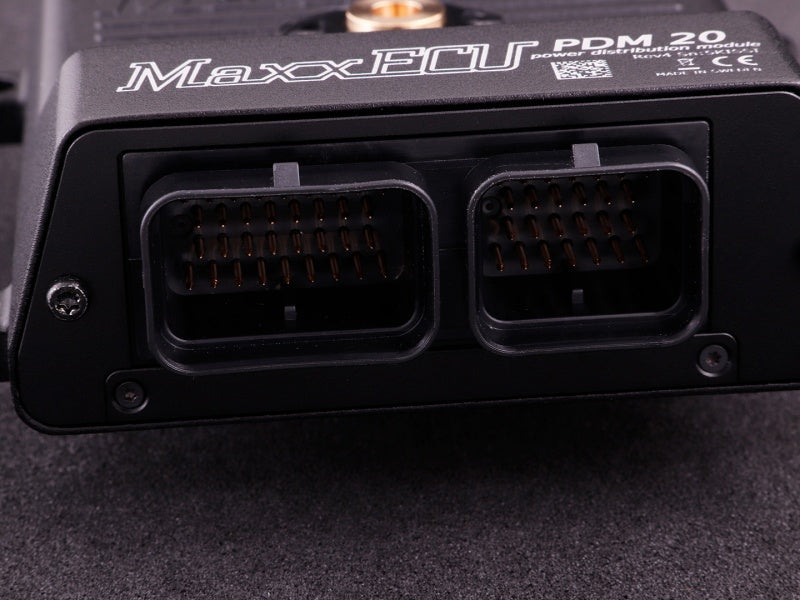

• 1x 34-pin and 1x 26-pin Superseal connectors
• M6 screw for battery connection
• PC communication over CAN-bus via any MaxxECU to MTune

MaxxECU PDM20 inputs

• 7 digital / analog (0-24V) inputs
• Software selectable 12V pullup
• CAN keypad (4,6,8,12 keys)

MaxxECU PDM20 outputs

• 230A maximum current throughput
• All outputs are PWM capable
• Current and voltage measuring
• 6 outputs with H-bridge drivers
• Overtemperature protection
• Output overcurrent protection via emulated fuse characteristics and hardware backup protection
• Monitored +5V sensor supply output
• Outputs can be paired to increase current capacity
