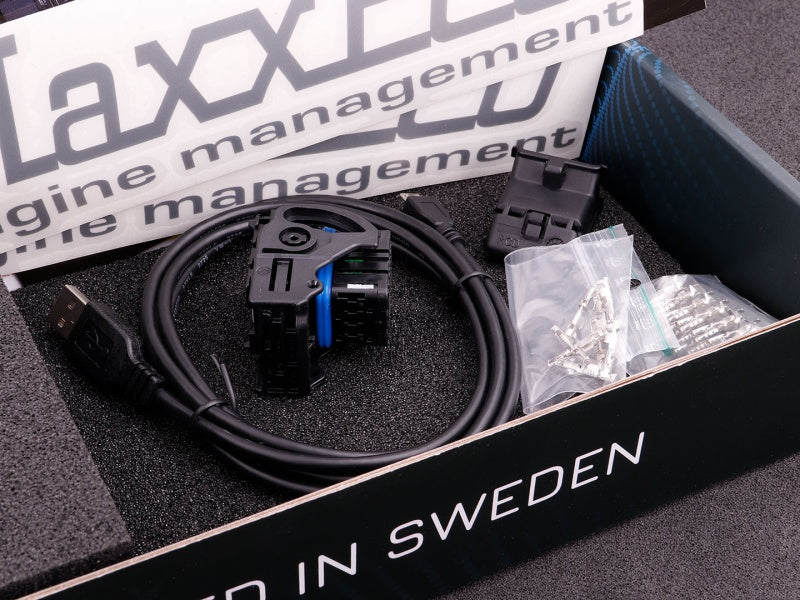

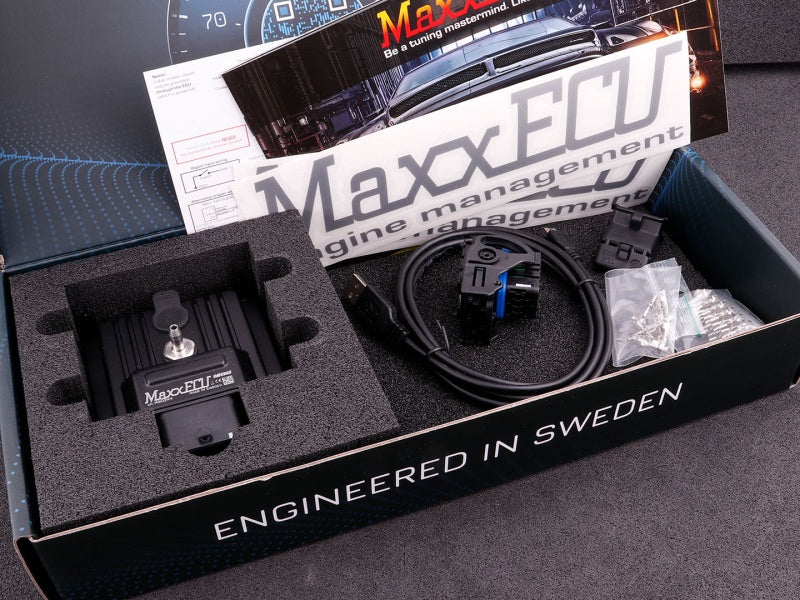

MaxxECU MINI - BASIC (ECU, connectors and accessories)

MaxxECU Mini is a truly advanced engine management system

What is MaxxECU Mini suitable for?

• All 4-stroke 1-8 cylinder
• Snowblowers, mopeds, boats and other simple projects
• Up to 4-cyl fully sequential
• Up to 8-cyl with waste spark

Note! MaxxECU Mini does not have a built-in broadband lambda sensor. An external one can be connected either via the analog input or the CAN bus.

MaxxECU Mini inputs:

• Intake air temperature (IAT)
• Water temperature (CLT)
• Throttle Position Sensor (TPS)
• 1 trigger input, VR / digital
• 2 digital inputs for e.g. rotation speeds (HALL) or switches
• 2 extra 0-5V sensor inputs. Can be used for additional sensors such as fuel/oil pressure measurement.
• Built-in MAP sensor, up to 3 bar / 43.5 psi
• CAN bus

MaxxECU Mini outputs:

• 4 nozzle outputs (for high-impedance)
• 4 ignition outputs, 5V pulse control for ignition amplifiers or CDI devices.
• 4 extra groundable outputs. Can practically control almost anything (taking into account the current limit)! GPO 1-3 (2A), GPO 8 (2A)
