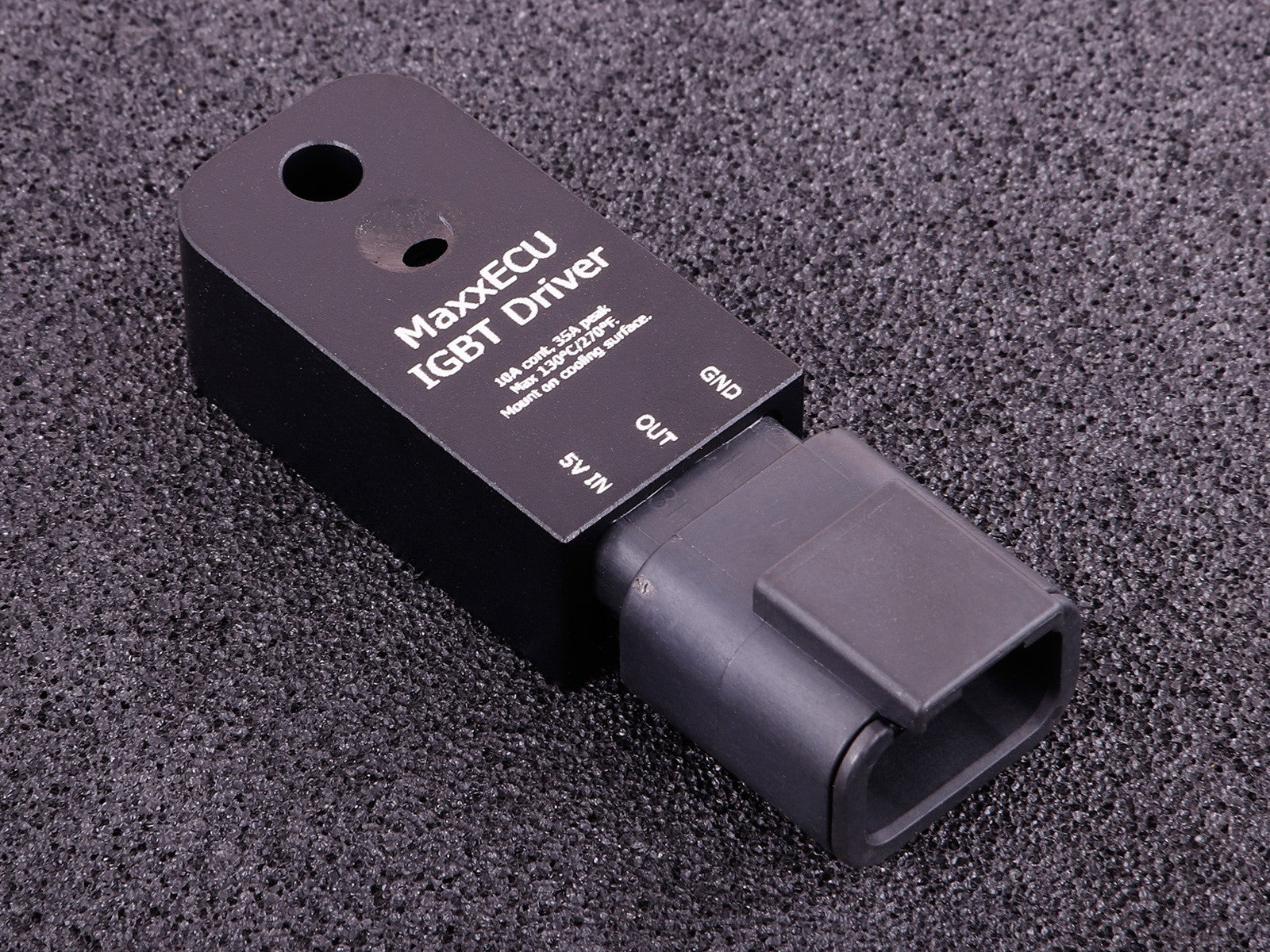

MaxxECU - IGBT single driver module

Used as an external ignition amplifier or, for example, to control a NOS solenoid.

The device requires mounting on a larger surface for heat dissipation. It connects directly to any MaxxECU ignition output.

Features:

• Rated current: 10A
• Peak current: 30A
• Easy connection with 3-pin DTM connector
