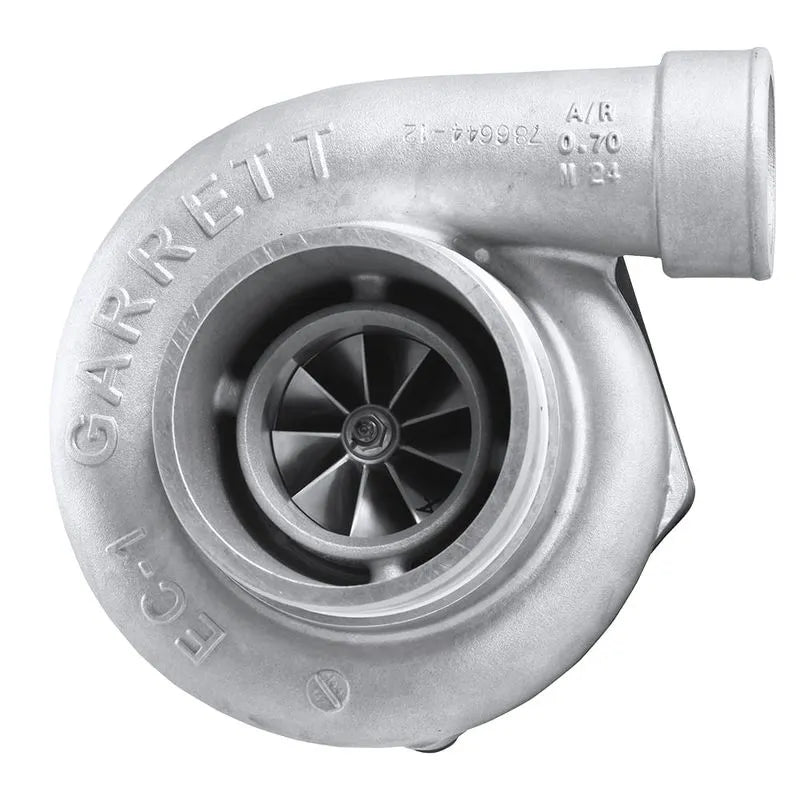

Garrett - GTW3684R Supercore (Standard Rotation) 62mm Comp Ind

Product Description

GTW Series Turbochargers Were Engineered To Provide Budget-Minded Enthusiasts With A High-Performing Mid Frame Product That Is Offered In Ball Bearing And Journal Bearing Options. GTW Combines Popular Compressor Inducer Sizes Like 58MM | 62MM | 64MM | 67MM With Slightly Larger (Than GTX) Turbine Wheel Sizes.

Key Features

• Ported Shroud Design For Surge Resistance
• 62MM Turbocharger Compressor Incuder
• Ball Bearing Rotating Group
• Forged Fully-Machined Billet Compressor Wheel
• Turbine Housings Available In Divided Configuration
• Lightweight Aluminum Backplate

Maximum Allowable Turbocharger Speed

130 KRPM. The Use Of This Product Above Max Turbocharger Speed ​​Is At The Owner's Risk, And Can Result In Damage And Premature Failure. To Protect The Turbocharger From Overspeed When Operating, A Speed ​​Sensor Can Be Installed Into The Compressor Housing To Monitor Shaft Speed. Sensors Sold Separately.

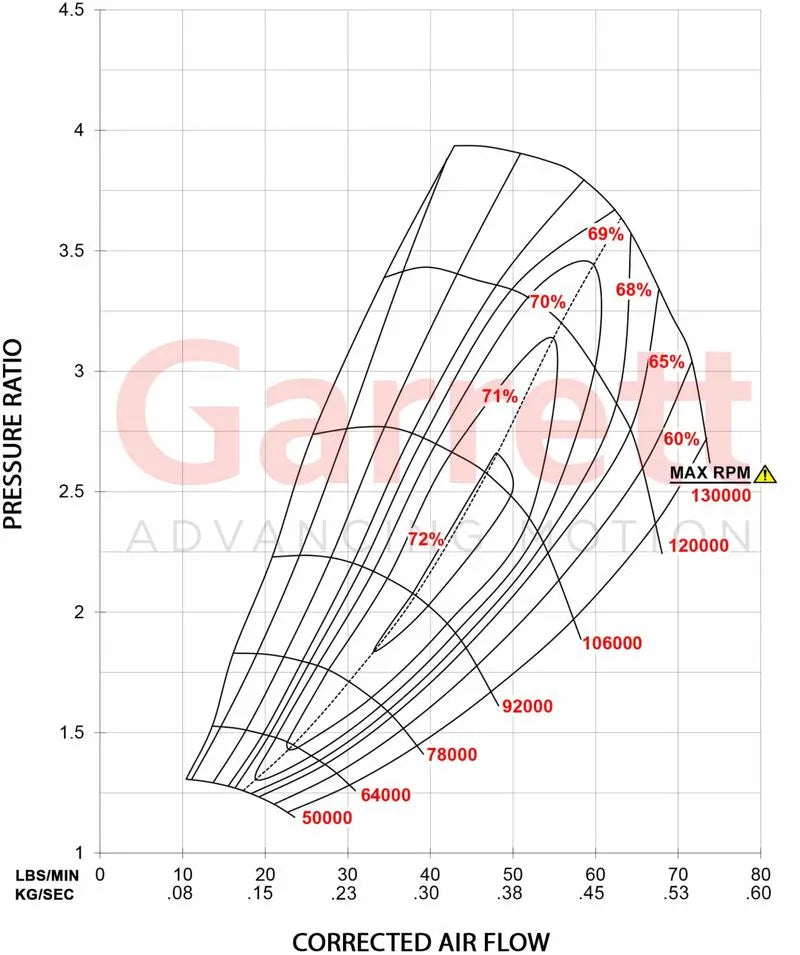

Performance Results Of This Product Are Highly Dependent Upon Your Vehicle's Modifications And Tuning/Calibration. The Horsepower Numbers Represented Above Are Calculated Based Strictly On Choke Flow Of The Compressor Map (Total Turbo Capability), Which Represents The Potential Flywheel Horsepower.
